Torch-On

PRODUCTS > WATERPROOFING

Bituminous products are perfect for the waterproofing of roofs on buildings as they move with the structure as they are not too rigid and do not absorb water. Waterproofing membranes systems are designed to protect both residential and commercial buildings through a mixed substance made up of organic liquids that are highly sticky and viscous. Bitumen is a hydrocarbon and is created naturally from crude oil, it is a useful carbon store and does not generate greenhouse gases.


Flat Roofs, Torch-On
Torch-On, The membrane rolls off the base product being fed through a bitumen saturation tank.
Torch-On, Large rollers used to feed the membrane through the manufacturing process, impregnating the membrane.

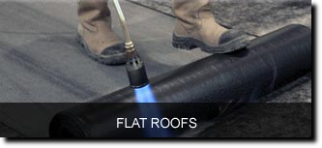

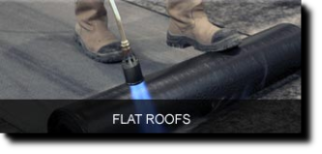

Torch-On, Bitumen sheeting being applied to a flat roof area.
Torch-On, The last of the membrane being measured for a perfect fit.

The membrane rolls off the base product being fed through a bitumen saturation tank.

Large rollers used to feed the membrane through the manufacturing process, impregnating the membrane.

Bitumen sheeting being applied to a flat roof area.

The last of the membrane being measured for a perfect fit.

Perfect for waterproofing

Bitumen is a hydrocarbon and is created naturally from crude oil. It is a useful carbon store and does not generate greenhouse gases. The membranes are therefore a sustainable way of storing carbon on the Earth's surface

The Torch-On Components
Bituminous membranes are made up of more than one product.
Bitumen - Mixed with a filler (limestone or sand) component such as sand. Polymers are added to the bitumen such as APP (atactic polypropylene) a plastic additive that gives rigidity and tear resistance, or SBS (styrene butadiene styrene)a rubber additive that gives more elastic benefits.

Base Products - Polyester, fibre glass, rag fibre (hessian), and paper. These products are bought in roll format and are pulled through the bitumen mixes on huge rollers. The base product becomes saturated in huge tanks by the tar like bitumen substance, creating rolls of waterproof material.
Mineral - The small granules are added to the top of the felt, decreasing the products fire vulnerability.

There are many other advantages of using bitumen waterproofing products:
As well as protecting buildings, bituminous roofing products can be in harmony with their environmental surroundings as different mineral finishes can be applied to the top surfaces.

Green roofs are also becoming more popular as the carbon footprint issues become more apparent.
The products have an extremely
long life span, with most membranes having BS (British Standards) marks against each product name.
The fumes given off during installation are
not harmful to human health and there is low noise pollution during application.
Bituminous membranes protect insulation and can reflect harmful sun rays. New products also contain photovoltaic cells that can produce solar energy.
Bitumen is not water soluble, non-biodegradable, not classified as carcinogenic and
does not release harmful toxins.

PRODUCT STATISTICS

Colour

  • Black

Total Solids

  • 100%

Specific Gravity

  • 1.3 – 1.4

Coverage

  • 9.75m per 10 mroll

Water Vapor Permeability

  • Impermeable

Physical Properties

Chemical Resistance

  • Resistant to mild acids and alkali solutions.

  • Not resistant to hydro-carbon solvents, diesel

Slump Resistance

  •  Will not slump on a vertical surface at 95 c

Penetration(100g/5s/70c)

  • 50-60

Cold Flexibility (20mm mandrel)

  • < 5c°

Elongation @ 25c

  • >25%

Tensile Strength >

  • 900 N/5cm

Tear Resistance

  • >300 N

Application

  • Concrete Roof Decks

  • Planters & Flower Boxes

  • Under Screed or Tiles

  • Vehicular Traffic Areas

  • Water Retaining Structures

  • Tanking / Damp proofing

Description

  • Thermoflex AP is a torch on APP modified bitumen Membrane, available in 3.5, 4.5, and 6 kg/m sq grades in 10m roll lengths 1m wide

Construction

  • The membrane consists of a 10 micron LDPE plastic to prevent blocking the adhesive layer of modified bitumen a stabilized 180 gm  needle punch polyester carrier. A weathering layer of modified bitumen coated with silica to prevent blocking and supply a surface key for decorative finishing coatings
